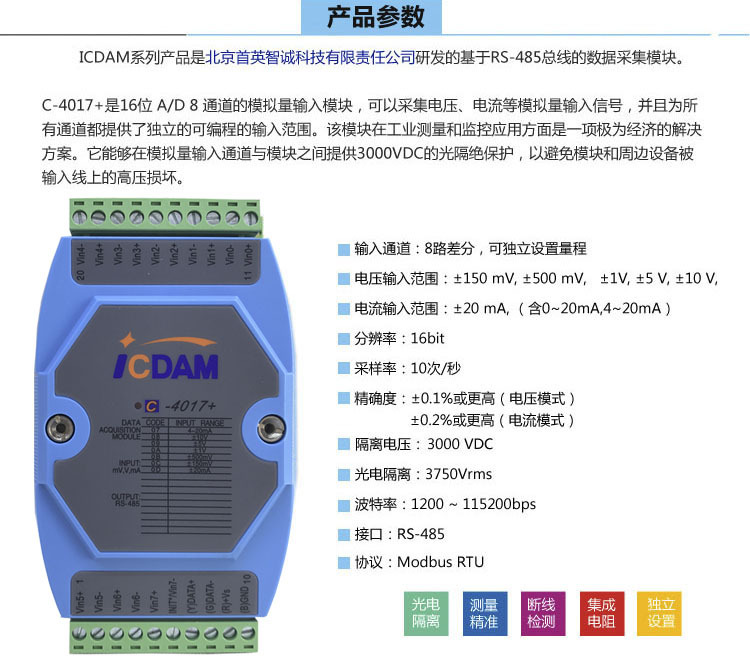

C-4017+ 8-ch Analog Input Module with Modbus
Specifications
General
Power Consumption 1.2 W @ 24 V DC
Watchdog Timer System (1.6 second) &Communication
Supported Protocols ASCII command and Modbus/RTU
Analog Input
Channels 8 differential
Channel Independent Configuration Yes
Input Impedance Voltage: 20 M?6?8
Current: 120 ?6?8
lnput Type mV, V, mA
lnput Range ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V,
±20 mA, 4 ~ 20 mA
